Inline Non-Return Valve Conversion Kit For Rigid Pipe

Part Number 15234 Categories ,

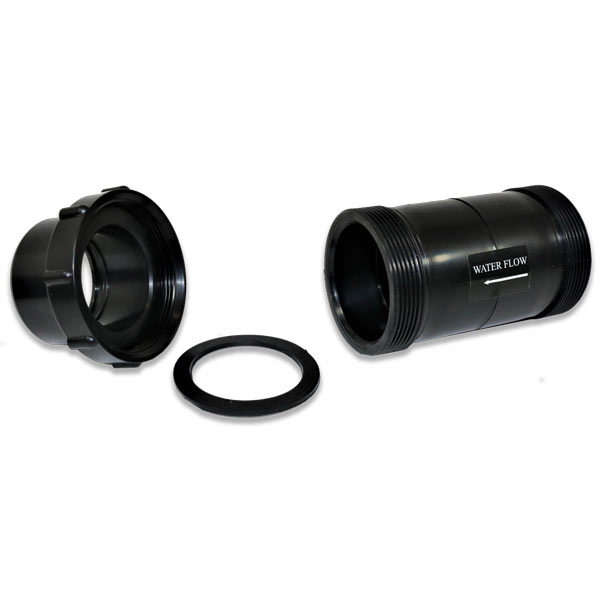

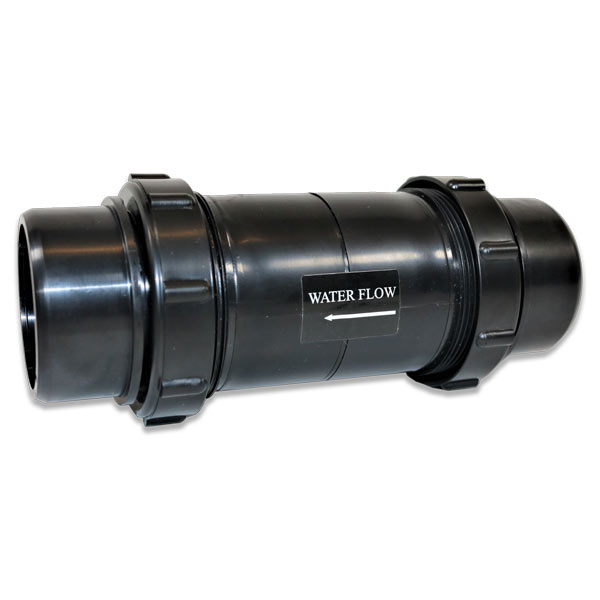

Inline Non-Return Valve Conversion Kit

The Inline Non-Return Valve Conversion Kit enables this valve to work with rigid pipe or fittings; This kit still enables the removal of pipe/fitting by unthreading the Spinner Nut. This is essential when it comes to carrying out maintenance on your valve.

This kit simply threads onto your valve. the spinner nut has an outside diameter (OD) of 56mm. This is designed to attach to 56mm(ID) fittings such as bends, tees, and pump fittings. The addition of the 56mm-56mm straight connector will allow for 56mm (OD) ridged pipe to connect to the valve

The spinner nut will come pre-assembled and the 56mm-56m straight connect will be supplied but not attached. This enables the user to choose how they want to set up this kit

When assembling this kit, please ensure the Sealing “O” Ring is added

This kit will work with either of the sizes of the valve (43mm or 50mm)

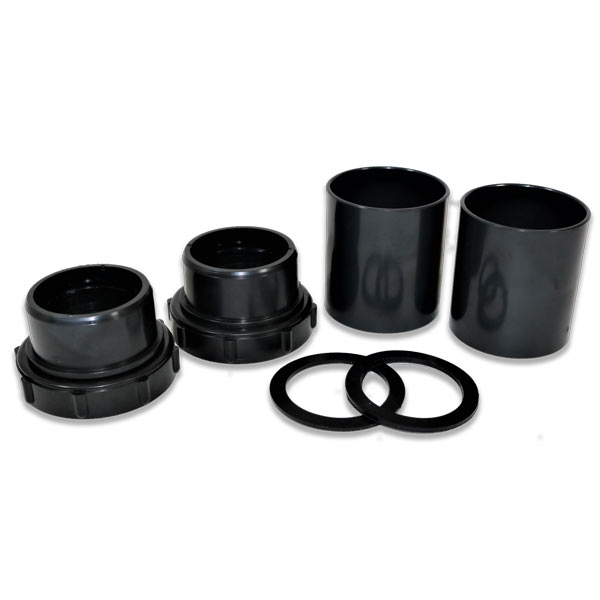

This kit is supplied with:

  • 2 x Spinner Nuts
  • 2 x 56mm-56mm Straight Connectors
  • 2 x Sealing “O” Rings

Please Note: The Inline Non-Return Valve is not supplied with this kit

For more information about the Inline Non-Return Valve please click

Additional information

Weight 0.176 kg
